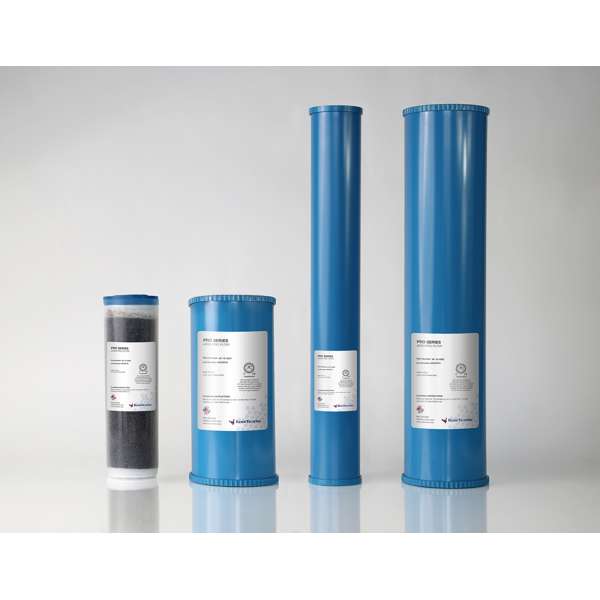

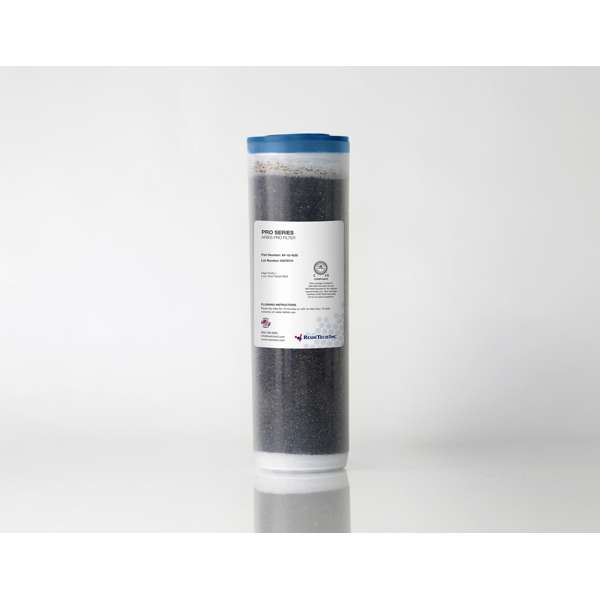

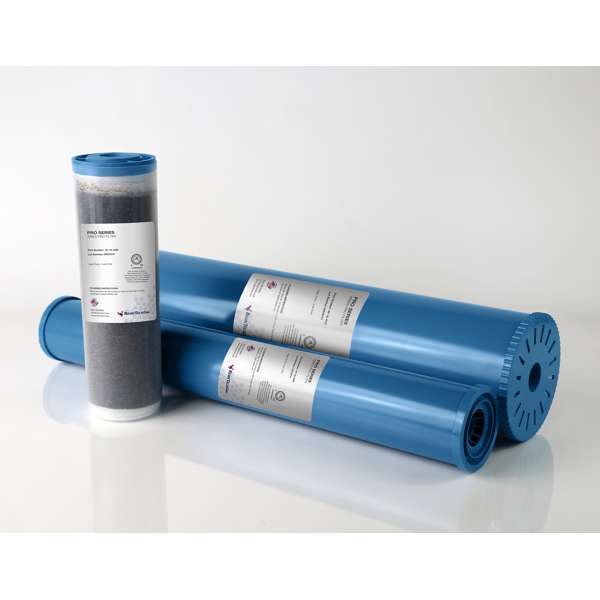

Ultra High-Purity & Low Odor DI Filter Cartridge (Drop-in)

AF-XX-4020

Water filtration cartridge removes contaminants and improves water quality.
Nos filtres sont vendus uniquement par carton (quantités ci-dessous).
Cliquez sur le bouton « Contacter le service commercial » pour obtenir un devis.

Description du produit

The process used for removal of all dissolved salts from water is referred to as deionization or demineralization. Deionization requires the flow of water through two ion exchange materials in order to affect the removal of all salt content. Aries Ultra High-Purity & Low Odor Deionization cartridges are engineered to provide a resistivity of between 14-18 MΩ. In addition the standard characteristic of demineralization, the media has low odor characteristics (for humidification), and low TOC (for sensitivity to organics). These cartridges are ideal for misting, humidification, and laboratory applications. Sized to fit standard Slim and BB housings.

Caractéristiques et avantages

  • ResinTech® MBD-20
  • Ability to produce resistivity >14MΩ for polishing
  • Low-amine resins odor sensitive applications
  • Fits standard residential & industrial size housing
  • Oversized cartridge for maximum media fill
  • Lot numbered for component traceability
  • Made in the USA

Applications

Déminéralisation / DI

Certifications

Made in USA
WQA Gold Seal Component
Des ressources gratuites pour vous faciliter la tâche

Propriété physique

Taille du filtre
10" Slimline
SKU
AF-10-4020
Gamme de produits
ARIES
{"Filter Objective":"High-Purity, low odor Deionization","Filter Micron Rating":"25.0μ","Maximum Flow Rate":"0.3 gpm","Operating Pressure Range":"20-125 PSIG","Operating Temp Range":"40-100℉","Dimensions (D x L)":"2.5in. x 10.0in [6cm x 25cm]","Diameter":"2.5in. (6.35cm)","Standard Housing (D x L)":"2.5'' x 10.0''","Body Material":"PP","End Caps":"PP","Gasket":"TE","Number of Layers":1,"Component Media":"MBD-20","Capacity":"500 grains","Pads":"PE"}
{"Filter Objective":"High-Purity, low odor Deionization","Filter Micron Rating":"25.0μ","Maximum Flow Rate":" ","Operating Pressure Range":"20-125 PSIG","Operating Temp Range":"40-100℉","Body Material":"ABS","End Caps":"ABS","Gasket":"TE","Number of Layers":1,"Component Media":"MBD-20","Pads":"PE"}
