CG10-UPS
CG10UPS
Uniform particle size, premium grade, strong acid cation resin in sodium form. Amber-colored, minimal pressure loss, better regeneration efficiency compared to resins with Gaussian size distribution. Suitable for all industrial applications and recommended for countercurrently regenerated systems like packed beds.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Need more than a sample?
Click "Contact Sales" to order by the pallet, truckload, or other cubic foot containers.
Click "Contact Sales" to order by the pallet, truckload, or other cubic foot containers.
Product Description

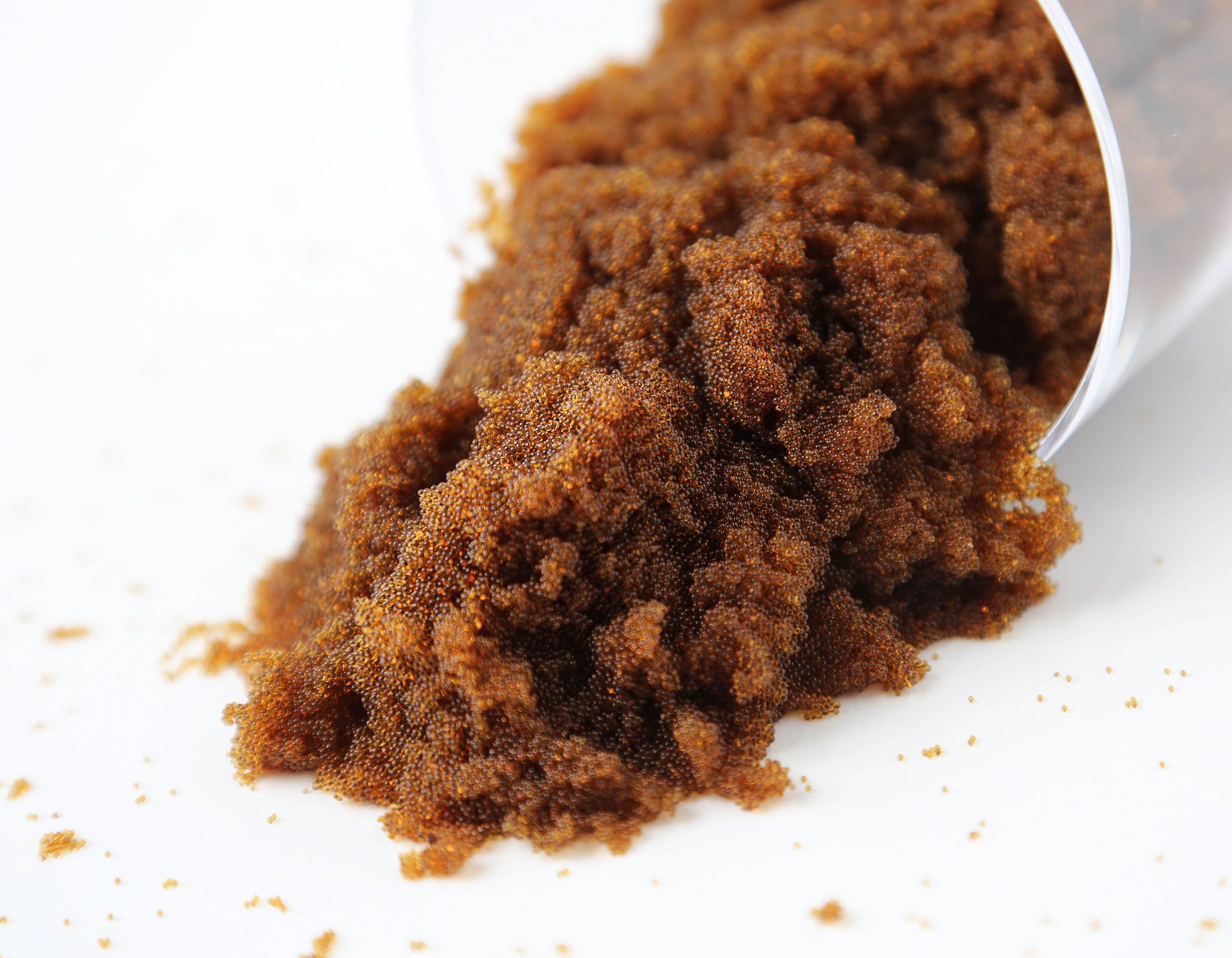

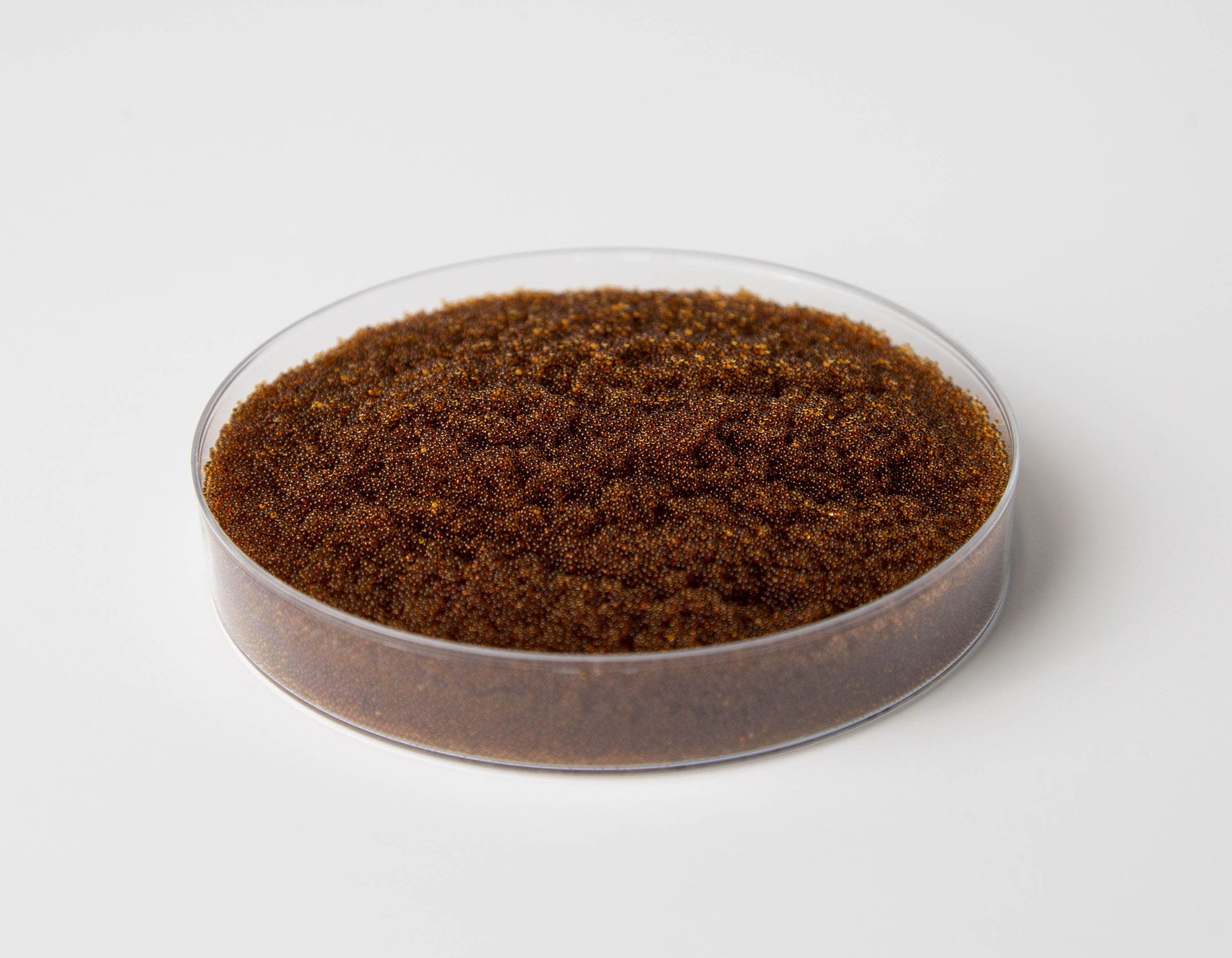

ResinTech CG10-UPS is a uniform particle size, premium grade, strong acid cation resin in the sodium form. It is amber in color and made from a 10% crosslinked gel. The uniform beads and smaller harmonic mean size yield minimal pressure loss and better regeneration efficiency compared to resins with Gaussian size distribution. It is intended for use in all industrial applications and is recommended for countercurrently regenerated systems such as packed beds.
Features and Benefits
- 10% divinylbenzene
- Low color throw
- Uniform particle size
- Superior physical stability
Applications
Markets
Industrial Water,Life Sciences & Ultrapure Water,Power Generation,Sugar Refining,Ethanol
Certifications
REACH Registered
Free Resources to Make Your Job Easier
Physical Properties
Products
CG10-UPS
SKU
CG10UPS
Polymer Matrix
Styrene/DVB
Ionic Form
Sodium (Na⁺)
{"Functional Group":"Sulfonic Acid","Physical Form":"Spherical Beads","Media Color":"Amber to Brown","Grade":"Standard","Particle Size Range":" - US mesh (μ - μ)","Minimum Sphericity %":95,"Moisture Retention (%)":"39 to 45","Uniformity Coefficient":1.25,"Reversible Swelling":"4 to 8% (Na → H)","Operation pH Range":"0 to 14","Max Continuous Temp":"280°F (138°C)","Max Pressure Loss":"25 psi (172 kPa)","Capacity (meq/mL)":2.2,"Ship. Wt. (lbs/cu.ft.)":53,"Shipping Weight":"52 - 54 lbs/cu.ft. (833 - 865 g/L)","Regenerable":"Yes"}
