CG10-H-UPS
CG10HUPS

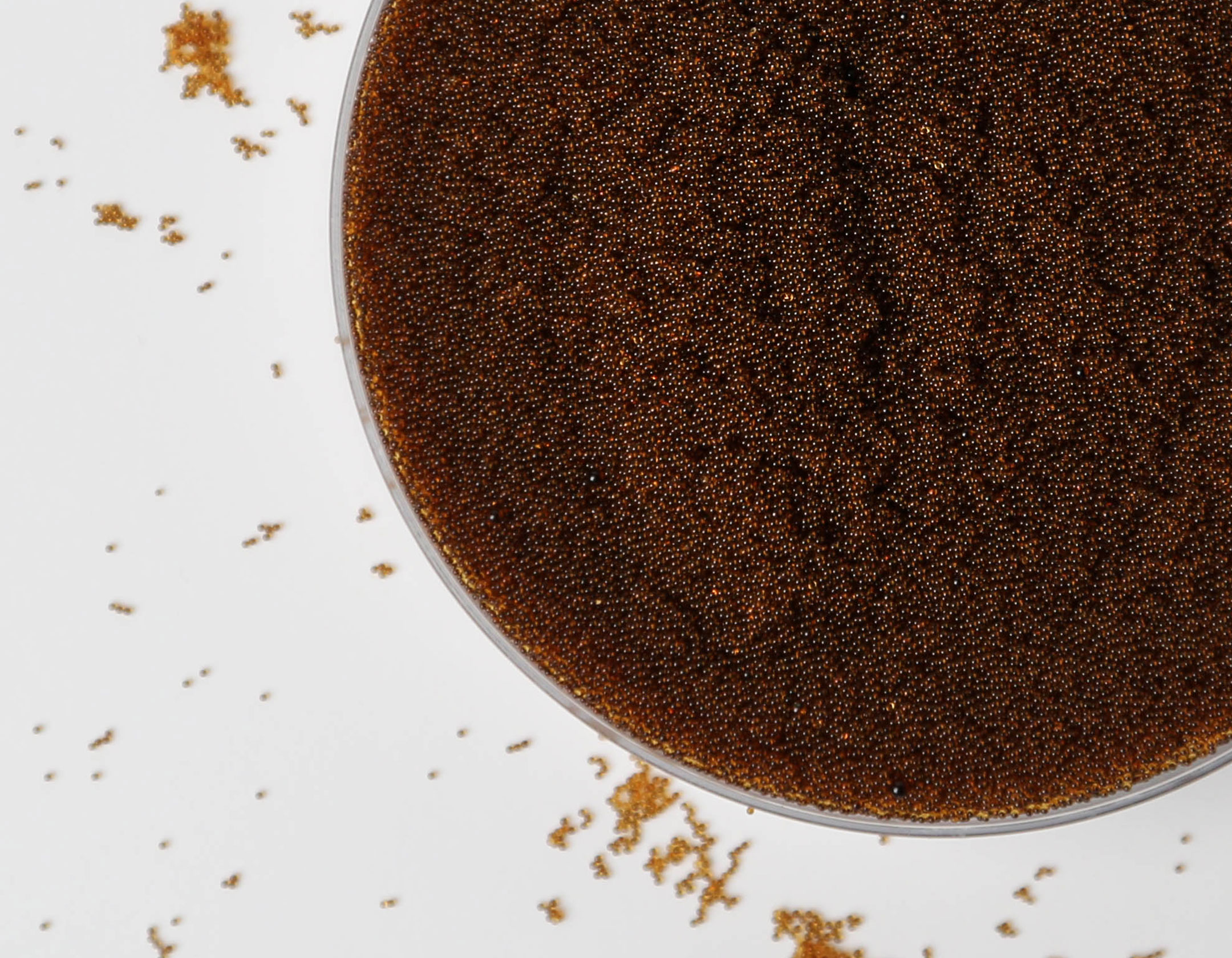

ResinTech CG10-H-UPS is an amber-colored uniform particle size hydrogen form 10% crosslinked gel strong acid cation resin. The uniform beads and somewhat smaller harmonic mean size yields minimal pressure loss and better regeneration efficiency compared to Gaussian-sized resins.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Need more than a sample?
Click "Contact Sales" to order by the pallet, truckload, or other cubic foot containers.
Click "Contact Sales" to order by the pallet, truckload, or other cubic foot containers.
Product Description
ResinTech CG10-H-UPS is an amber-colored uniform particle size hydrogen form 10% crosslinked gel strong acid cation resin. The uniform beads and somewhat smaller harmonic mean size yields minimal pressure loss and better regeneration efficiency compared to Gaussian-sized resins. It is intended for use in all industrial applications that require a hydrogen form cation resin and is recommended for countercurrently regenerated systems such as packed beds.
Features and Benefits
- 10% divinylbenzene
- Low color throw
- Uniform particle size
- Superior physical stability
Applications
Markets
Industrial Water,Life Sciences & Ultrapure Water,Power Generation,Sugar Refining,Ethanol
Certifications
REACH Registered
Free Resources to Make Your Job Easier
Physical Properties
Products
CG10-H-UPS
SKU
CG10HUPS
Polymer Matrix
Styrene/DVB
Ionic Form
Hydrogen (H⁺)
{"Functional Group":"Sulfonic Acid","Physical Form":"Spherical Beads","Media Color":"Amber to Brown","Grade":"Standard","Particle Size Range":" - US mesh (μ - μ)","Minimum Sphericity %":95,"Moisture Retention (%)":"46 to 52","Uniformity Coefficient":1.25,"Reversible Swelling":"4 to 8% (Na → H)","Operation pH Range":"0 to 14","Max Continuous Temp":"265°F (129°C)","Max Pressure Loss":"25 psi (172 kPa)","Capacity (meq/mL)":2,"Ship. Wt. (lbs/cu.ft.)":51,"Shipping Weight":"50 - 52 lbs/cu.ft. (801 - 833 g/L)","Regenerable":"Yes"}
